M4 Mini Diffuse Laser Proximity Sensor For Laser Distance Replacement Sensor

Contact Now
Luo Shida Sensor (Dongguan) Co., Ltd.
Visit Website
City:dongguan
Country/Region:china
Contact Person:MrsAnna
Contact Now

M4 Mini Diffuse Laser Proximity Sensor For Laser Distance Replacement Sensor

Ask Latest Price
Video Channel
Brand Name :Luoshida
Model Number :LTD-04NO
Certification :CE RoHS
Place of Origin :China
MOQ :10PCS
Price :Negotiable
Payment Terms :T/T
Supply Ability :1000PCS per month 3000pcs per month
Delivery Time :7-10 work days
Packaging Details :Normal standard:individual package with labels and outside is normal brown box.
Name :diffuse laser sensor
Size :M4 diameter
Stainless steel :stainless steel
light source :Red(660nm)
Spot size :arround 2mm
Cable length :Standard 2M
more
Contact Now

Add to Cart

Find Similar Videos

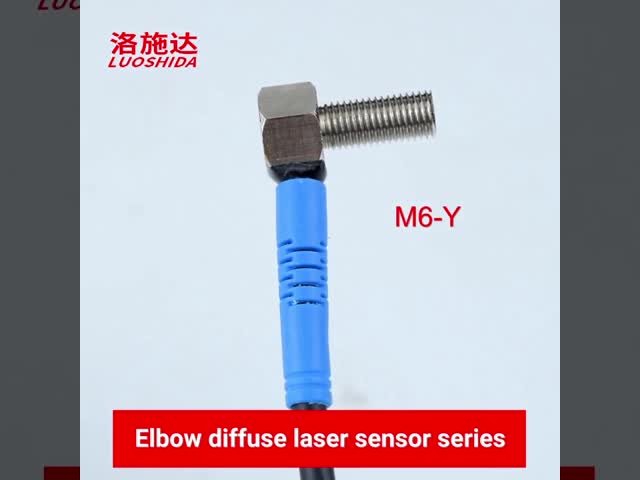

LUOSHIDA Small Diffuse Laser Sensor Diffuse Photoelectric Sensor NPN PNP NO NC Output 00:42
LUOSHIDA Small Diffuse Laser Sensor Diffuse Photoelectric Sensor NPN PNP NO NC Output
LUOSHIDA Square / Rectangle Laser Diffuse Sensor Q31 PBT Housing 10-30VDC 00:42
LUOSHIDA Square / Rectangle Laser Diffuse Sensor Q31 PBT Housing 10-30VDC

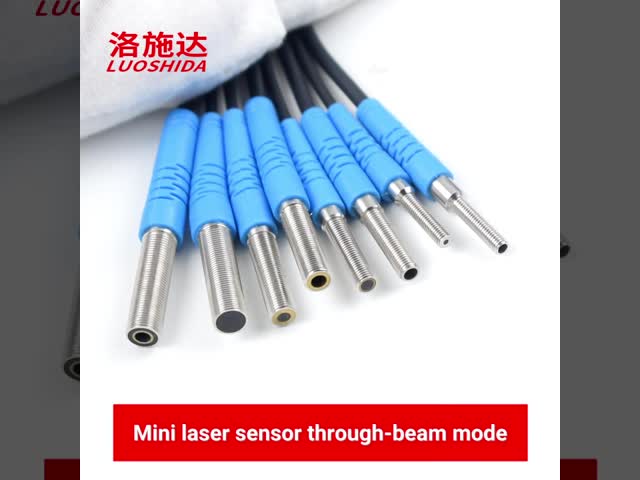

LUOSHIDA Small Through Beam Laser Sensor Elbow / Bend 90 Degree 00:43
LUOSHIDA Small Through Beam Laser Sensor Elbow / Bend 90 Degree
M12 Proximity Switch Diffuse Laser Proximity Sensor Switch 300mm Distance Adjustable Laser Measurement 00:42
M12 Proximity Switch Diffuse Laser Proximity Sensor Switch 300mm Distance Adjustable Laser Measurement
Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor 00:44
Cylindrical Through Beam M12 Proximity Sensor Switch Laser Displacement Sensor
Through Beam Type Square Laser Proximity Sensor With Cable Type 3 Wire Q31 Visible Light 660nm 00:39
Through Beam Type Square Laser Proximity Sensor With Cable Type 3 Wire Q31 Visible Light 660nm
LUOSHIDA DC 3 Wire All Series Through Beam Laser Sensor 20m / 30m Sensing Distance 00:44
LUOSHIDA DC 3 Wire All Series Through Beam Laser Sensor 20m / 30m Sensing Distance
DC 3 Wire M4 Laser Proximity Sensor Switch Small Size Elbow 90 Degree Bend Through Beam 00:41
DC 3 Wire M4 Laser Proximity Sensor Switch Small Size Elbow 90 Degree Bend Through Beam

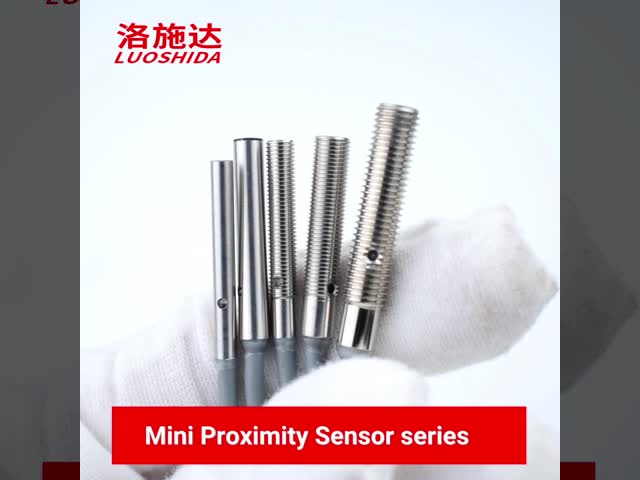

Small Size Inductive Proximity Sensor M3 / M4 / M5 / M6 Stainless Steel Housing 00:38
Small Size Inductive Proximity Sensor M3 / M4 / M5 / M6 Stainless Steel Housing
High Speed Plastic Rectangular Inductive Three Wire Proximity Sensor DC Q10 For Speed Detection 00:44
High Speed Plastic Rectangular Inductive Three Wire Proximity Sensor DC Q10 For Speed Detection
View Product Description

DC M4 mini Diffuse Laser Proximity Sensor For Laser Distance Replacement Sensor

Brief introduction about the sensor :

M4 laser sensor diffuse

Series: M4 laser sensor diffuse
Size: M4*0.5*20mm
Housing Material: Stainless steel
Spot size: the Min.0.5mm spot
The light source: Red(660nm)
Sensing Distance Sn:1-70mm adjustable
Operating Voltage: DC 10-30V
Output function : NPN/PNP NO/NC
Connection : 2M PVC cable

Specification of the sensor :

DC M4 Ultra-Mini laser sensor diffuse mode
Size M4*20mm
Sensing Distance Sn:(M) 50mm adjustable 70mm adjustable
Spot size Can be customized 0.5mm small spot
Housing Material Stainless steel
●With or Without LED ● With LED
The light source Red(660nm)
Operating Voltage 10-30VDC
DC Ripple <10%
No Load Current <10mA
Max.Load Current 150mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 100Hz
Response Time 5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5-10%(Sr)
Protection Category IP65
Operating Temperature 0°C - 50°C
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 180mA
EMC RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face Filter Mirror
Connection D3.8 3*0.15 black PVC 2M
DC 3-wire 10-30V NPN NO LTD-0450NO LTD-0470NO
DC 3-wire 10-30V NPN NC LTD-0450NC LTD-0470NC
DC 3-wire 10-30V PNP NO LTD-0450PO LTD-0470PO
DC 3-wire 10-30V PNP NC LTD-0450PC LTD-0470PC

M4 Mini Diffuse Laser Proximity Sensor For Laser Distance Replacement Sensor

Friendly reminder of the sensor :
1. When installing the photoelectric switch and laser switch, ensure that the switch is perpendicular to the detection object as much as possible. When installing side by side, it must not be installed too densely. There must be a certain interval. The interval distance requirement is directly related to the actual use environment, so as not to cause interference after installation Prevail.

2.The factory detection standard of photoelectric switch and laser switch is a square pure white paper baffle. The actual detection distance will change due to the difference of the color reflectivity of the picked object.

3.Laser and photoelectric products are not suitable for use in dusty, oily, humid and vibrating environments. The operating temperature is 0-50℃. The section of the switch head to the middle amplifier part has an optical fiber cable and cannot be folded. It is not resistant to the interference of the motor and the inverter. It should be kept at a certain distance. The working voltage is DC10-30V and the load current should not exceed 100 mA. (The switch cannot be used in areas involving personal safety, such as anti-pinching.

4.The detection standard for laser diffuse reflection and photoelectric diffuse reflection products is A4 pure white cardboard. The detection distance of the product is greatly affected by the color and reflectance of the detected object. The brighter the color, the better the reflection, the longer the detection distance of the product, the color The darker, the worse the reflection, the shorter the detection distance. If a black object is detected, the actual detection distance may only be about 20% of the factory detection distance.
